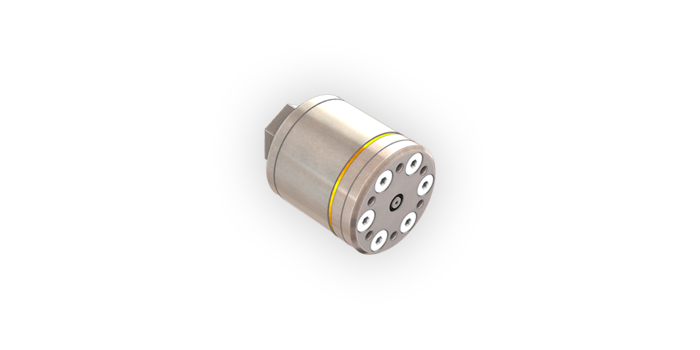

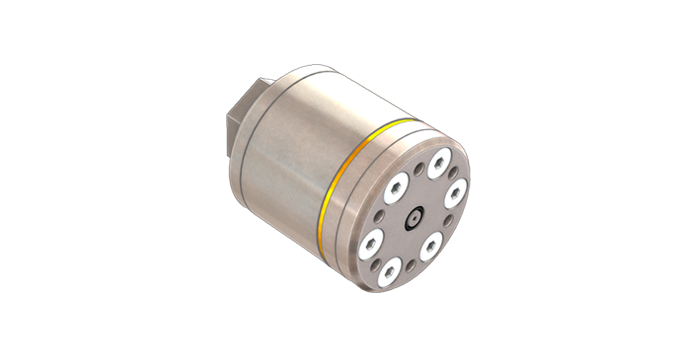

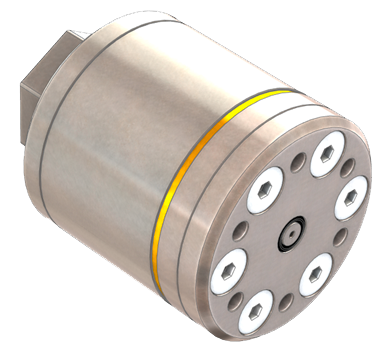

PulseLAB - Valve
The high-performance valve for demanding lab operations
Discover our brand-new Ultra High Pressure, Ultra Fast and Compact Valve, engineered for the most challenging laboratory and industrial environments.
With its miniature form factor and cutting-edge design, this electro-valve combines robustness, speed, and reliability.
Delivering opening times below 1 ms (with HV-prepulse) and supporting working pressures up to 400 bar, it ensures consistent and precise fluid control even under extreme conditions Experience compact power with exceptional performance — a next-generation valve designed to meet the exacting standards of advanced research and highpressure applications.

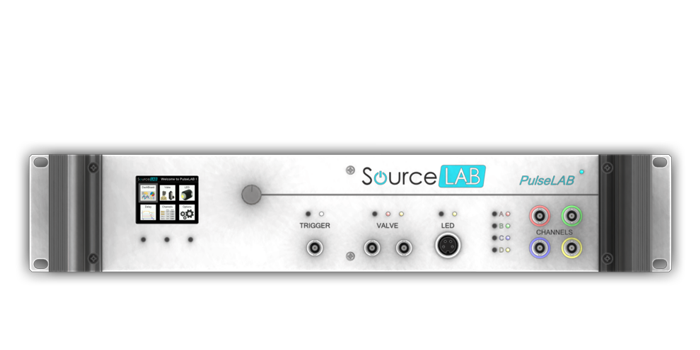

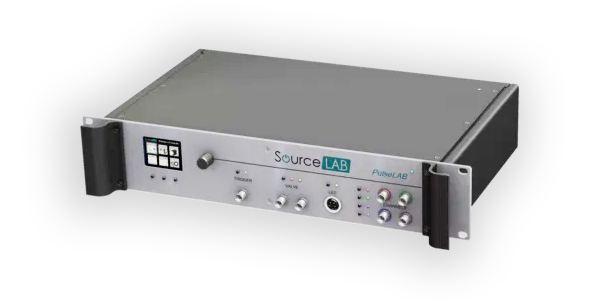

PulseLAB - Driver
The universal driver for precision valve control
Meet the PulseLAB Universal Digital Valve Driver, built to deliver unmatched accuracy and flexibility in controlling any type of pulse valve.
With its fully configurable modes, high-voltage pre-pulse capability, and microsecond timing precision, it ensures your experiments run with absolute reliability.
Designed for seamless integration into any laboratory setup, it provides the fine control and repeatability required for high-end research.
Take command of your valves with the most versatile and precise driver for advanced laboratory applications.
Ultra fast
Response time below 1 ms
High-Pressure
Up to 400 bar
Vacuum compatible
Small form factor
3×4 cm
Multi channels
Tunnable voltage
Four TTL channels outputs
For diagnostic sync
One trigger input
For lab integration
- Type: Pulse Solenoid Valve
- Size mm / Weight g: ⌀30 * h40 / 160
- Orifice diameter mm: 1
- Max operating pressure bar: 400
- Response time ms: <1
- Coil resistance Ohm: 73
- Poppet material: PTFE / PEEK
- Vaccuum compatibility: High-vacuum (10-7 mbar)
- Inlet port: G-1/8 (female)
- Function: 2 way (NC)
- Valve type compatibility: 1
- Valve type compatibility: Any pulse quick reaction valve such as Parker 9 series
- Pre-pulse voltage: Tuneable: 60-250 V
- Pre-pulse duration: Tuneable: 0-1000 µs (µs accuracy)
- Hold voltage: Tuneable: 10-34 V
- Hold duration: Tuneable: 0- 1 s (µs accuracy)
- Burst mode: Repetition rate limited by valve opening time
- Logic-Level (TTL) Input: External trig: x1
- Logic-Level (TTL) Output: External experiment control (camera sync, DAQ,...): x4
- Other Output: LED driver for experiment illumination: x1
Particle acceleration
Harnessing precision
for next-generation particle control.
Laser spectrology
Pushing the limits
of spectral resolution with precise valve timing.
Plasma physics
Driving innovation
in plasma dynamics with unparalleled accuracy.
Founded in 2013, SourceLAB is dedicated to providing a quicker access to essential tools for research in laser plasma science at ultra-high intensities, as well as compact solutions for energetic radiation and particle sources.
Located in the premises of the Laboratoire d’Optique Appliquée (LOA) in Paris, SourceLAB has developed a top-level expertise in laser plasma sources and their applications for experiments or societal purposes.
Precisely, our know-how spans from temporal contrast enhancement techniques to underdense and overdense interaction regimes using both gas and solid targets of unique characteristics. We provide quick and sound solutions of targetry systems and integrated sources, assist researchers and technicians in the control of plasma and interaction conditions and even develop new solutions on-request.
