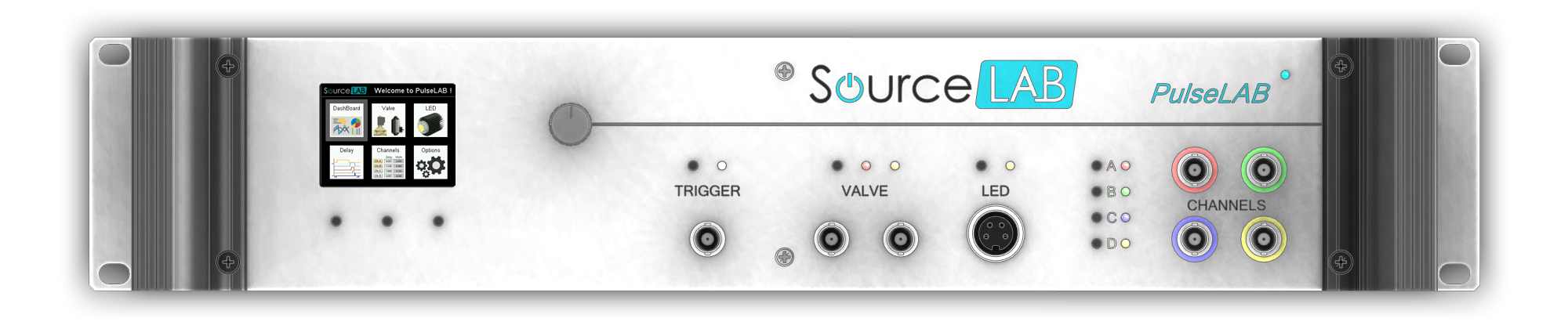

PulseLAB - Driver
The universal driver for precision valve control
Meet the PulseLAB Universal Digital Valve Driver, built to deliver unmatched accuracy and flexibility in controlling any type of pulse valve.
With its fully configurable modes, high-voltage pre-pulse capability, and microsecond timing precision, it ensures your experiments run with absolute reliability.
Designed for seamless integration into any laboratory setup, it provides the fine control and repeatability required for high-end research.
Take command of your valves with the most versatile and precise driver for advanced laboratory applications.
Main features:
Multi channels
Full custom on demand
Tuneable voltage
For prepulse and hold-voltage
Four TTL channels outputs
For diagnostic sync
One trigger input
For lab integration
Detailed specifications:
- Valve type compatibility: 1
- Valve type compatibility: Any pulse quick reaction valve such as Series 9
- Pre-pulse voltage: Tuneable: 60-250 V
- Pre-pulse duration: Tuneable: 0-1000 µs (µs accuracy)
- Hold voltage: Tuneable: 10-34 V
- Hold duration: Tuneable: 0- 1 s (µs accuracy)
- Burst mode: Repetition rate limited by valve opening time
- Logic-Level (TTL) Input: External trig: x1
- Logic-Level (TTL) Output: External experiment control (camera sync, DAQ,...): x4
- Other Output: LED driver for experiment illumination: x1
